Revoria EC1100 - Fujifilm
Revoria EC1100 - Fujifilm
Revoria EC1100 - Fujifilm
Revoria Press EC1100 optimally supports a wide range of applications and creative finishing versatility, delivering quality image resolution at faster printing speeds, producing improved picture vibrancy, smooth gradation, and sharper text.
In addition to its attractive finishing features, the printer is also able to handle long paper and heavyweight paper.
Features
| Limitless Productivity and Versatility |
| “Air suction feeder” with high media handling capabilities |
| Supports Long Paper of Maximum 1,200 mm |
| Handles Various Media Weight from 52 gsm to 400 gsm |
| Wide Variety of Finishing Options |
| Selectable Print Server Fiery EC11 and Fiery EC12 |
| High Image Quality, Automatic Processing Technology, Reliable System Maximising Uptime |
| Automation with Inline Sensor |
| Optimize print conditions for each paper type |
| Auto Sheet Clearing After Paper Jam |
| Easy Rectification During Jams |
Technical Specifications
| Type Console | |
| Colour Capability Full Colour | |
| Printing Resolution 2,400 x 2,400 dpi | |
| Continuous Print Speed*1 A4 100 ppm | |
| A3 52 ppm | |
| Paper Size*2 Tray 1, 2, 3 Standard size: Max A3, 11 x 17”, Min A5 | |
| Custom size: 140 x 182 mm to 330 x 488 mm | |
| Bypass Tray (Tray 5)*3 Standard size: Max A3, 11 x 17”, Min A6 | |
| Custom size: 98 x 148 mm to 330 x 660 mm | |
| Paper Weight Tray 1, 2, 3 64 to 256 gsm | |
| Bypass Tray (Tray 5)*3 52 to 300 gsm*4 | |
| Paper Tray Capacity*5 Standard 550 sheets x 3-tray | |
| Optional [High Capacity Feeder C3-DS + Multi Sheet Inserter for Banner Print] 2,000 sheets x 2-tray + 250 sheets | |
| [2nd High Capacity Feeder C1-DS + High Capacity Feeder C3-DS+ Multi Sheet Inserter for Banner Print] | |
| 2,000 sheets x 2-tray x 2-connection + 250 sheets [Air Suction Feeder C1-DS*6] | |
| 2,100 sheets x 2-tray + 250 sheets | |
| [Air Suction Feeder C1-DSXL*6 + Banner Unit for Air Suction Feeder C1-DSXL] | |
| 800 sheets*7 + 2,100 sheets + 250 sheets | |
| [Chained Air Suction Feeder C1-DS-R + Chained Air Suction Feeder C1-DS-L*6] | |
| 2,100 sheets x 2-tray x 2-connection + 250 sheets | |
| [Chained Air Suction Feeder C1-DS-R + Chained Air Suction Feeder C1-DSXL-L*6 + Banner Unit for Air Suction Feeder C1-DSXL] | |
| 2,100 sheets x 2-tray + 800 sheets*7 + 2,100 sheets + 250 sheets | |
| Max 10,300 sheets (Standard + Chained Air Suction Feeder C1-DS-R + Chained Air Suction Feeder C1-DS-L) | |
| Output Tray Capacity*5*8 500 sheets(A3) | |
| Power Supply AC200-240 V +/- 10 %, 24 A, 50/60 Hz | |
| Maximum Power Consumption 5.76 kW | |
| Dimensions*9 W 2,671 x D 834 x H 1,370 mm | |
| Weight*9 727 kg |
Application
Envelope
Heavyweight (400 gsm)
Long paper (864 mm) 2 sided
Full Bleed Trim
Ticket
Postcard
Business Card
Long Paper (1,200 mm)
Easy Financing with Machine Dalal
Business and Machinery Loans available for this model.
Apply in minutes. Get approved fast. Flexible loan options to power your machinery purchase.
Apply Nowtrending_flatGrow Your Machinery Sales
More Exposure. More Leads. More Machinery and Equipment Sales. Reach more Printers, Publishers and Packaging Manufacturers with Machine Dalal.Follow the link to explore Enterprise Services.
Learn Moretrending_flat
Keep Exploring

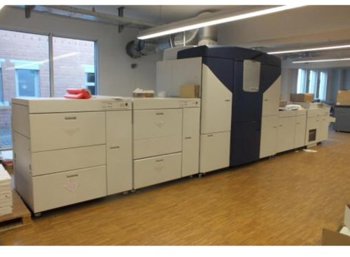

IGEN4-110 XXL PRESS
Digital Press
IGEN4-110 XXL 5, 6 Mio. Performance Rated speed Range depending on paper size: from 110 ipm for 7" x 7" to 40 ipm for 14.33 x 22.5" Resolution 4800 600 1-bit Recommended average monthly volume 200,000 - 3,750,000 pages per month Line Screens 150, 175, 200, or 300 lpi, all utilizing 256 gray levels Capabilities Printed Sides Duplex Technology Network Interfaces Ethernet 10/100 baseT Protocols: TCP/IP, AppleTalk, Novell IPX/SPX, Net BEUI, EtherTalk Phase II, LPR/LPD Print Engine Digital Color Press Xerography Paper Handling Paper sources Up to 6 feeder modules, each with 2 trays Standard paper capacity 30,000 sheets Maximum paper capacity with options 80,000 sheets Auto Duplex Automatic duplex with wide radius inverter for second side imaging Media Dimensions - Minimum 7 x 7 inches Media Dimensions - Maximum 14.33 x 22.5 inches Media Weight - Minimum 16 lbs Media Weight - Maximum 130 lbs Media Types Coated: gloss, matte, dull, silk Uncoated, textured, specialty stocks Recycled, perforated, tabs, transparencies, a wide variety of labels, synthetics DocuCard, NeverTear, DuraPaper Mixed-stock jobs supported at rated speed No drying time before coating Download Specialty Media Prospecting Guide Input Tray 1 2,500 sheets Tray 2 2,500 sheets Optional High Capacity Feeder Lasermax Roll Systems DocuSheeter iG: 50,000 sheets Other Input Devices Xerox Tiltatron/Stackatron/DocuCard Solutions Output Output Capacity Two carts per stacker; stacker cart holds 12" (3,000 sheets) 80 lb. coated text - up to four stackers available Finishing Flats GBC Delta Laminator GBC Hi Tac Laminate Film D&K Super Stick Laminate Film Epic CTi-635 Inline Coating System Stitched Sets Xerox Squarefold Booklet Maker CP Bourg BDFx Booklet Maker Duplo System 5000 Inline Booklet Maker Duplo SCC Nearline Booklet Maker Lay Flats GBC Fusion Punch II GBC DigiCoil Binder Tape Bound Xerox DB120-D Document Binder Case Bound On Demand Machinery Perfect Bound Xerox Manual Book Factory CP Bourg BB3002 Perfect Binder Standard Horizon BQ270 Perfect Binder Booklet Making Xerox Squarefold Booklet Maker CP Bourg BDFx Booklet Maker Duplo System 5000 Inline Booklet Maker Duplo SCC Nearline Booklet Maker Other Finishing Options Xerox Finishing Interface Kit Print Controllers Digital Front Ends Xerox FreeFlow Print Server Features: Maximum efficiency for short-run, fast-turnaround color jobs High performance and productivity for complex and graphic intense VI jobs ConfidentColor Technology including: ICC DeviceLink Profiling Automatic Image Enhancement Outstanding color and image quality controls Seamless interoperability with FreeFlow Product Suite Integrated Parallel RIP Technology Pantone licensed Easy-to-use, customizable GUI for job and production management Concurrent receive, RIP, and print Network Standard Interfaces: Ethernet 10/100/1000 baseT Protocols: TCP/IP, Novell NDS IPX/SPX, IPP AppleTalk, IPP, DHCP, SNMP MIB II support for third-party administration tools File Support: Adobe PostScript Level 1, 2, 3 Adobe Acrobat 7.0, PDF 1.6, PDF/X TIFF, PCL5c, PCL6XL Xerox CX Print Server, powered by Creo Features: High performance RIP designed to optimize digital printing and VI applications with outstanding image quality Comprehensive production tools including imposition, color management, image enhancement, and preflight Flexible Variable Information support for VPS and Xerox VIPP Traditional print and pre-press workflows Network Standard Interfaces: Ethernet 10/100/1000 baseT Protocols: TCP/IP, IPX/SPX, AppleTalk, Net BEUI File Support: Postscript level 1, 2, 3 PDF/Acrobat EPS, EPSF DCS, DCSF Print-ready RTP jobs Creo VPS Xerox VIPP Xerox EX Print Server, powered by Fiery Features: Leverage resources more efficiently Achieve maximum productivity and power Increase profits through faster setup and processing of high

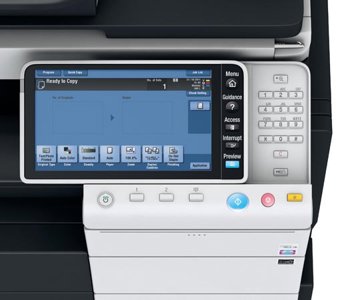

C 754 E
