Nagel - Citoborma 480 AB
Technical Specifications
| Year | 2005 |
| Machine Condition | In Stock |
Machine Description
We are pleased to offer:.

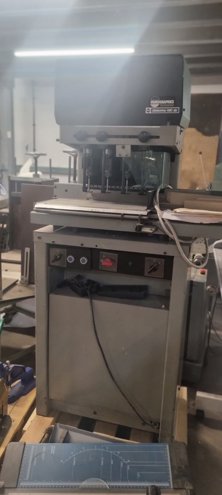

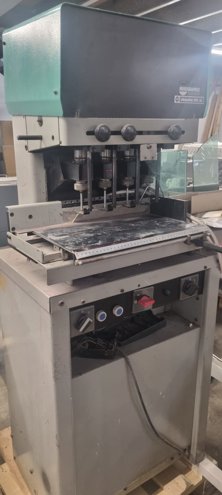

Used Nagel Citoborma 480 AB — Paper Drilling Machine Year 2005.
.
Specification.
.
The Nagel Citoborma 480 AB is a high-precision 4 head paper drilling machine for professional print finishing..
.
Efficiently drills stacks of paper for manuals, catalogues, reports, and multi-hole documents..
.
Features movable work table, pedal control, and adjustable drill heads..
.
Ideal for medium to high-volume production..
.
Key Specifications.
.
Type: 4 Head Paper Drill.
Stack Capacity: Up to 60 mm.
Maximum Sheet Size: 460 × 280 mm (~18" × 11").
Adjustable Drill Spacing: 45 – 285 mm.
Hole Spacing Range: 6 – 410 mm.
Drill Diameter Supported: 2 – 10 mm.
Machine Dimensions: 850 × 580 × 1500 mm (L × W × H).
Weight: ~210 kg.
Electrical Requirements: 220/380 V, 50 Hz, ~0.92 kW.
.
Applications.
Preparation for wire, comb, or coil binding.
Manuals, instruction booklets, catalogues.
Posters, reports, educational or office documents.
Good working order.
Available immediately...
The Nagel Citoborma 480 AB is a high-precision 4-head paper drilling machine designed for professional print finishing applications. Built for medium to high-volume production, this 2005 model efficiently drills stacks of paper for manuals, catalogues, reports, and multi-hole documents. Key features include a movable work table, pedal control, and adjustable drill heads, making it ideal for preparing documents for wire, comb, or coil binding. Its robust construction and reliable performance ensure consistent results in demanding production environments.
Key Technical Aspects:
Dimensions and Specifications : The machine measures 850 × 580 × 1500 mm (L × W × H) and weighs approximately 210 kg. It operates on 220/380 V, 50 Hz electrical supply with a power consumption of ~0.92 kW. The drill supports diameters from 2 to 10 mm and accommodates adjustable drill spacing between 45 and 285 mm, with a hole spacing range of 6 to 410 mm.
Paper Handling : The Citoborma 480 AB handles stacks up to 60 mm thick and supports a maximum sheet size of 460 × 280 mm (~18" × 11"). Its adjustable work table and pedal control enhance operational efficiency for high-volume document preparation.
Nagel - Citoborma 480 AB
Price On Request
